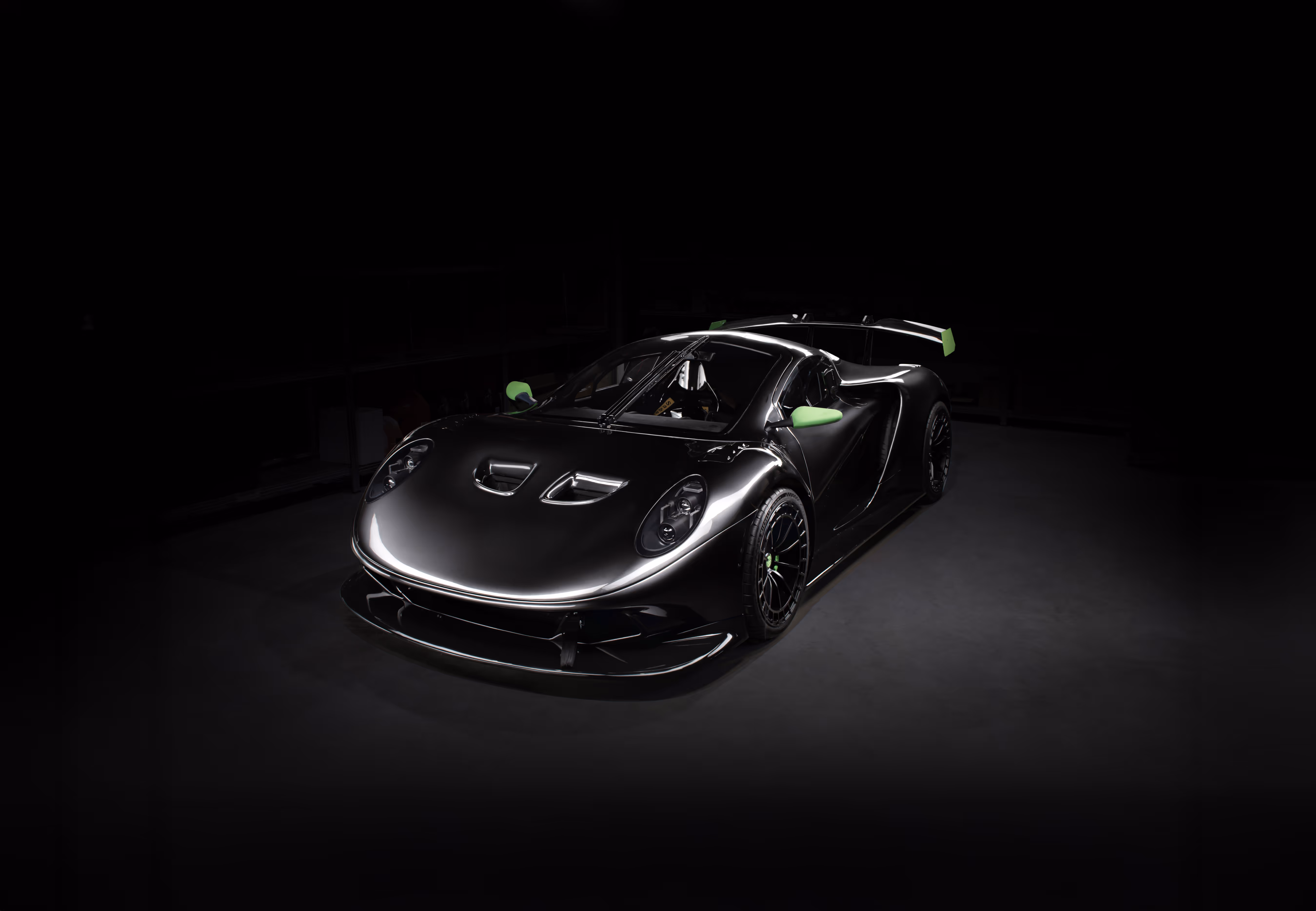

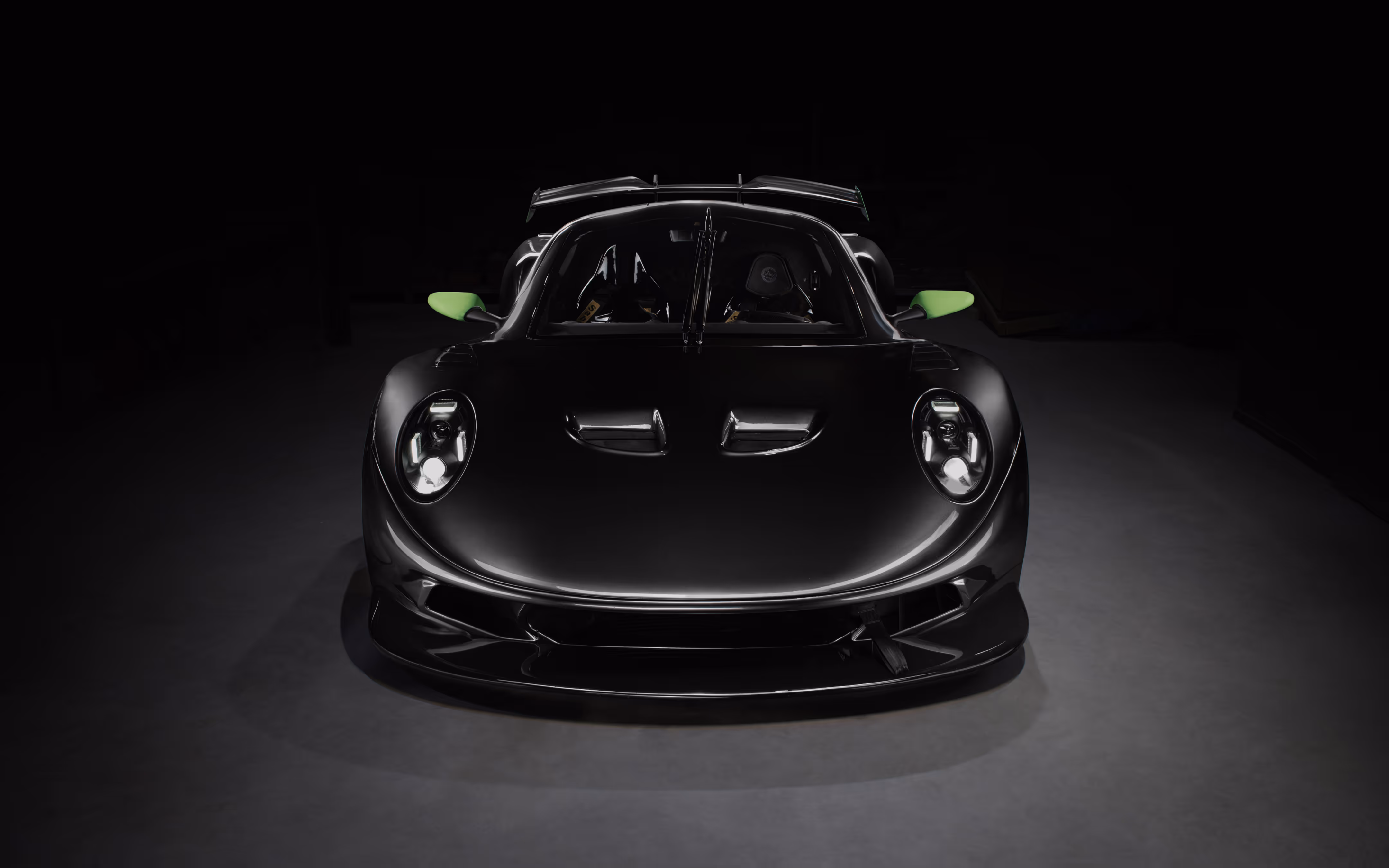

RR01 The New Era of Kit Cars
Rhino Racing is revolutionizing the kit car industry. Build your own supercar with our user-friendly, race-ready machine designed to hit the streets.

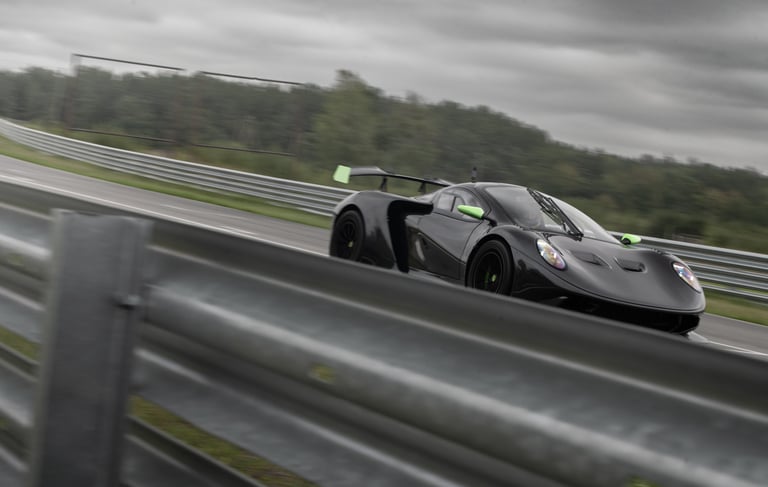

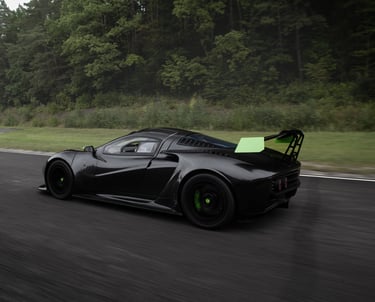

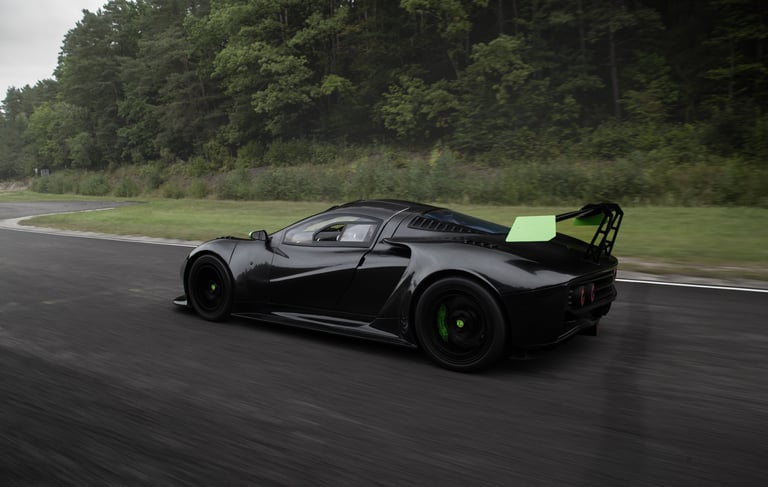

RR01 is a component car that offers a thrilling driving experience with its low weight, powerful engine, and excellent downforce. Although it’s engineered for racing, it can also be a great choice for weekend driving adventures. With its impressive performance and sleek design, RR01 is the perfect car for those who appreciate the joy of driving.

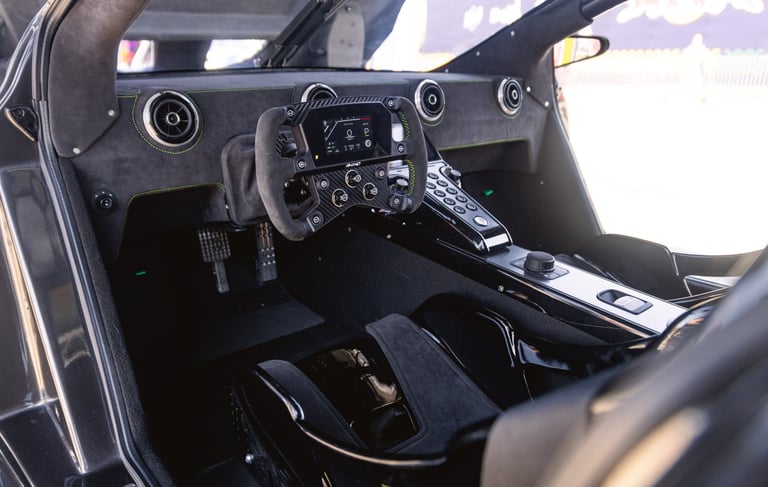

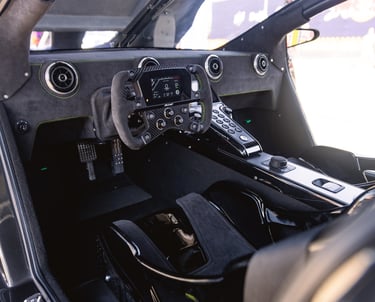

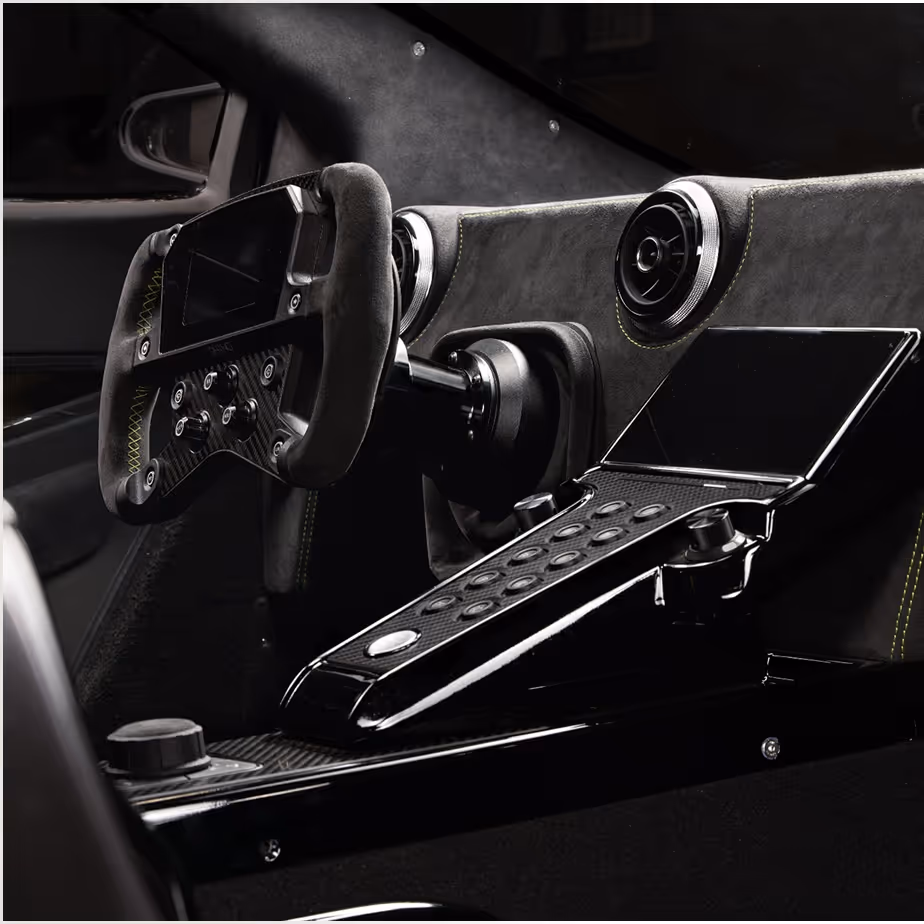

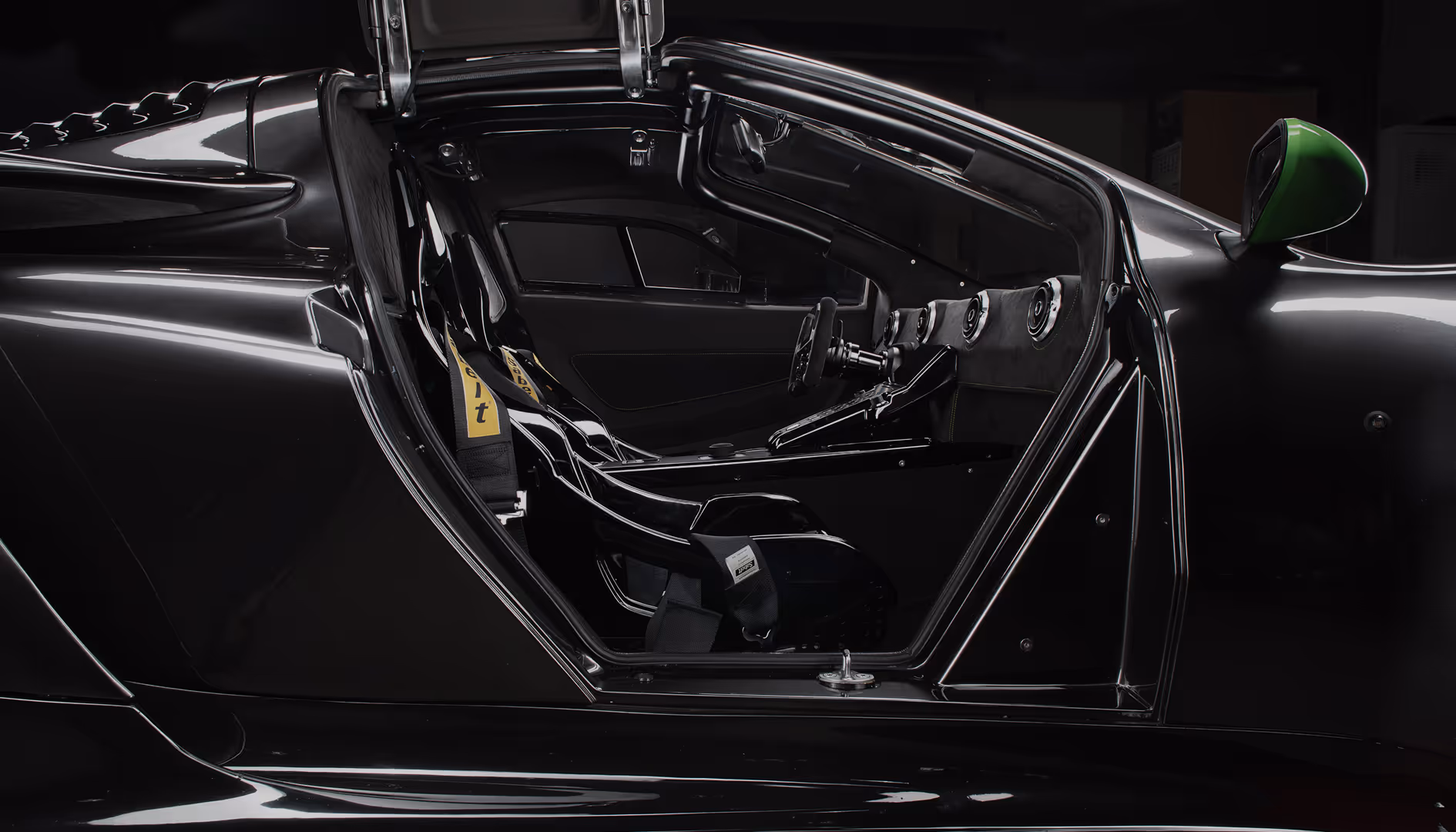

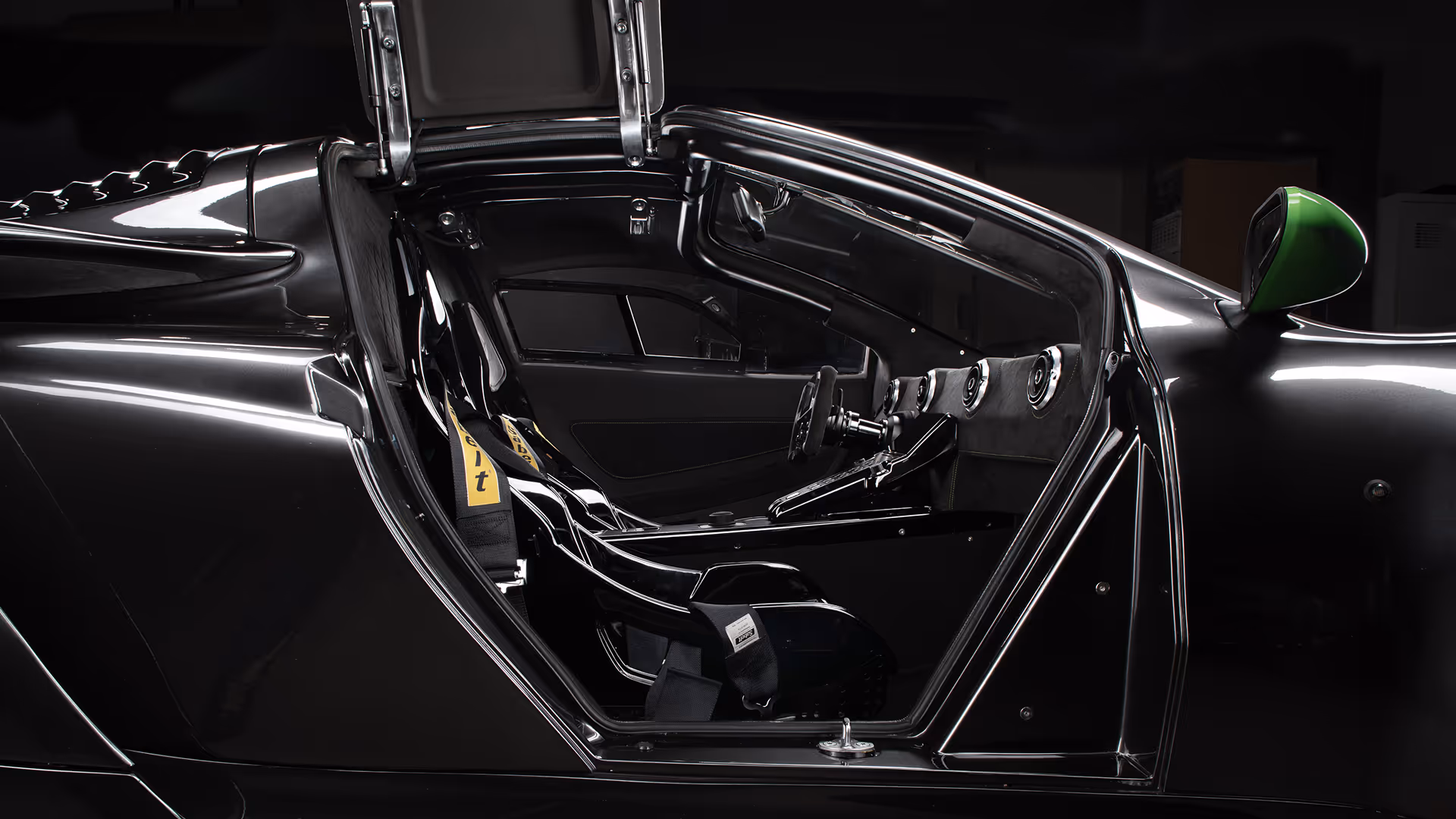

The interior of the RR01 prototype combines comfort and race features, featuring a sleek design with Alcantara details and carbon fiber trim. Notable elements include a custom steering wheel, 6-point roll cage, Tillet racing seats, and a Sabelt safety harness for optimal safety.
Entertainment and navigation are seamlessly integrated through Apple CarPlay and Android Auto on the head unit, controlled by a custom rotary controller.
6061T6 class aluminum alloy chasis with a built in roll-bar is engineered for the full protection of the driver. While ultra light GFRP body with unidirectional reinforcment is designed for endurance with aesthetics in mind.
Technical Specifications
POWERTRAIn

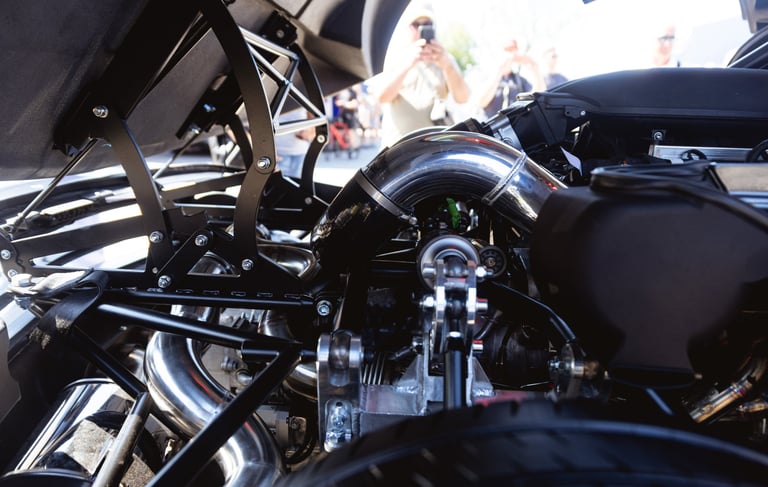

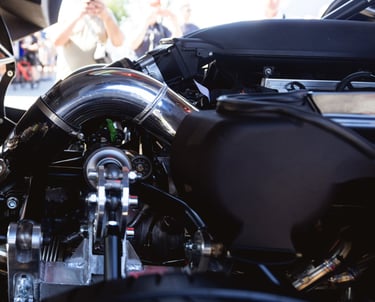

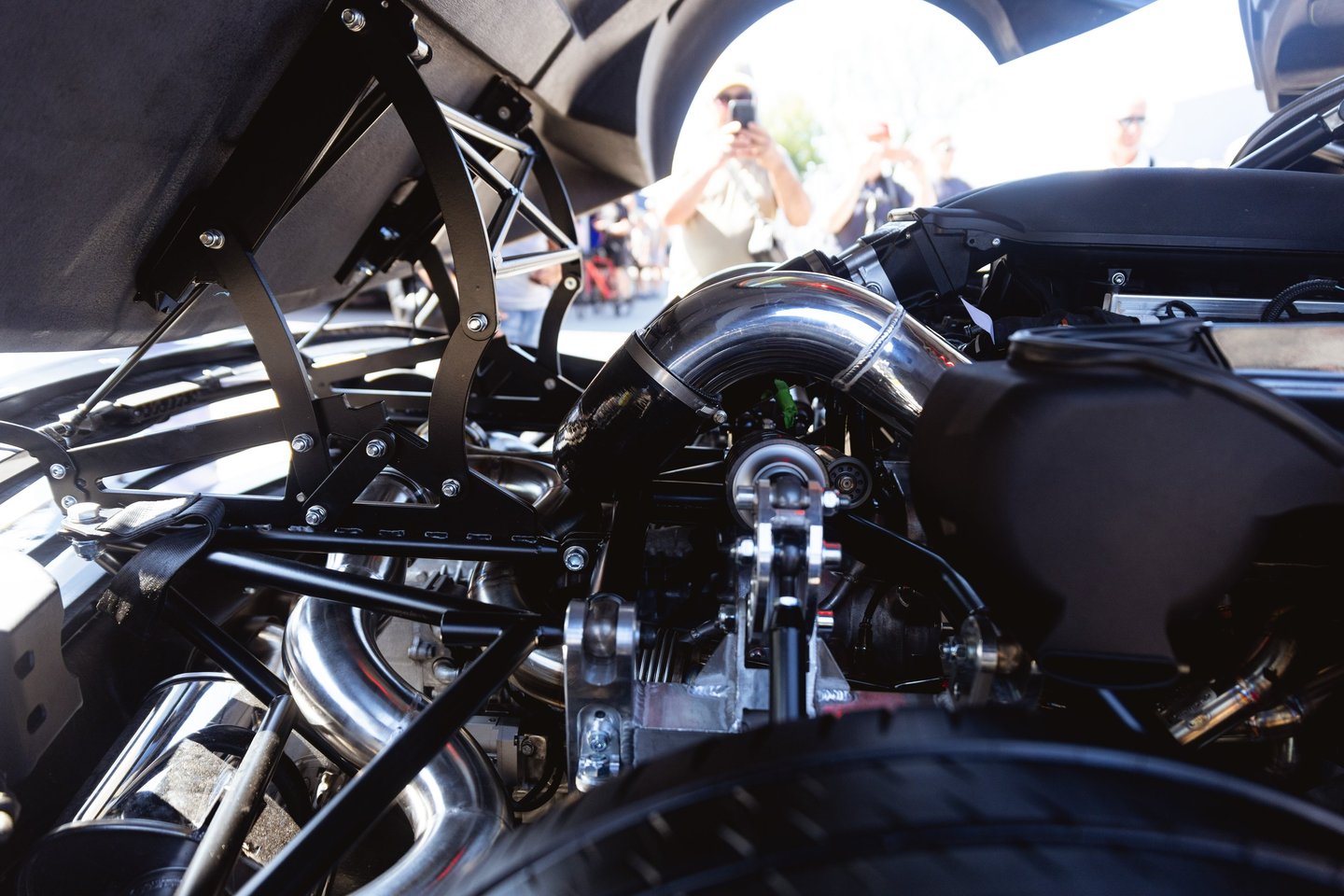

Fully rebuild Audi 5.2 V10 engine with audi R8 intake manifold
New custom 6 speed, race tested sequential gearbox
Custom, lightweight, billet single mass flywheel
Racing, SACHS Clutch Kit
Limited slip differential
Motorsport ECU unit
Full motorsport engine wire looming
MME Motorsport pneumatic shifting kit
BODY AND CHASSIS
High quality GFRP body with inner rigidity frame reinforcements

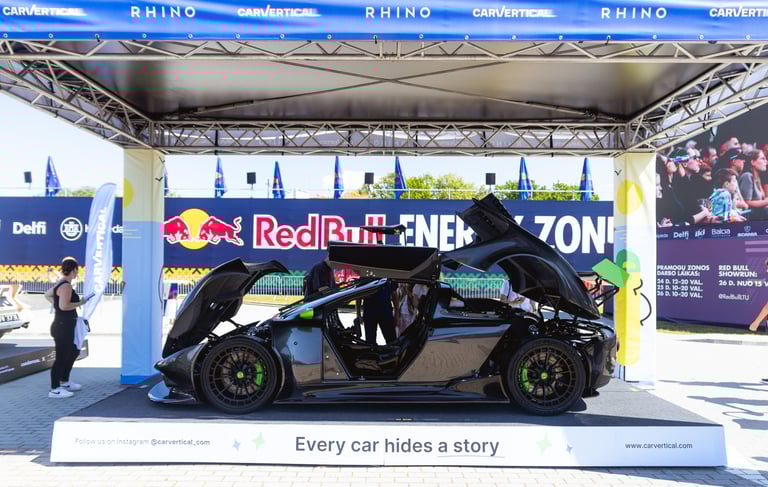

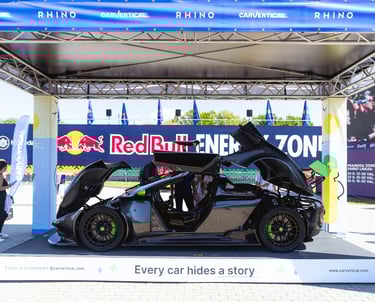

Gullwing doors
Flat aero floors with rear diffuser
T6 aluminium welded monocoque chasis
Fully welded roll cage in 45mm 25CrMo4
Modular front and rear suspension structures
EQUIPMENT
HVAC unit
Tillett B6 GFRP seats
6 point Sabelt racing harness
Custom front lights with Bi-Led Lens and DRL | custom rear flowing light

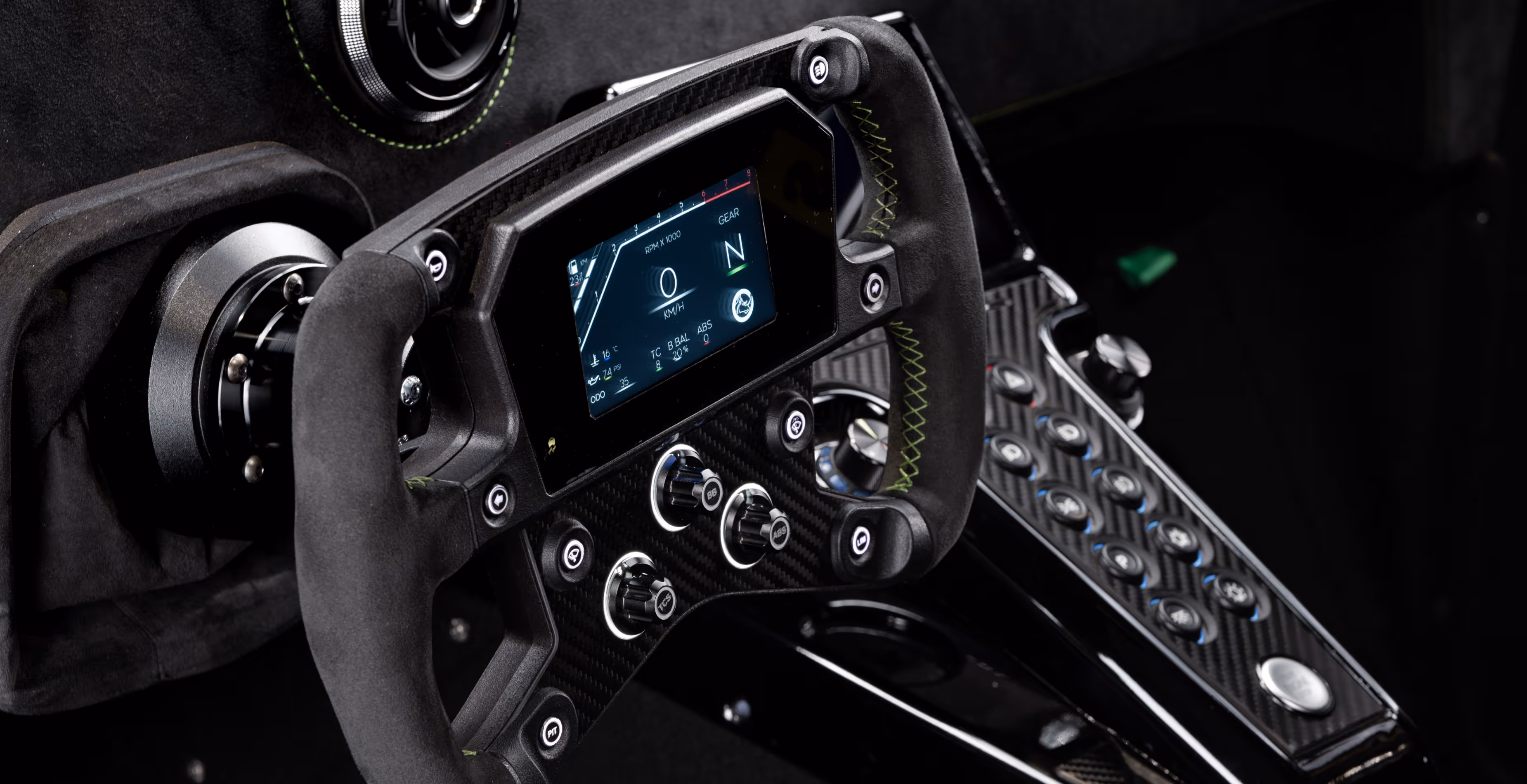

310mm steering wheel with integrated 4.3inch display
Quick release with built in connector
Mono wiper

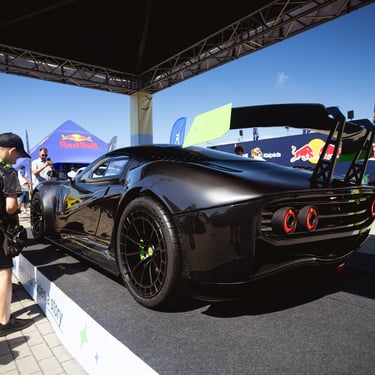

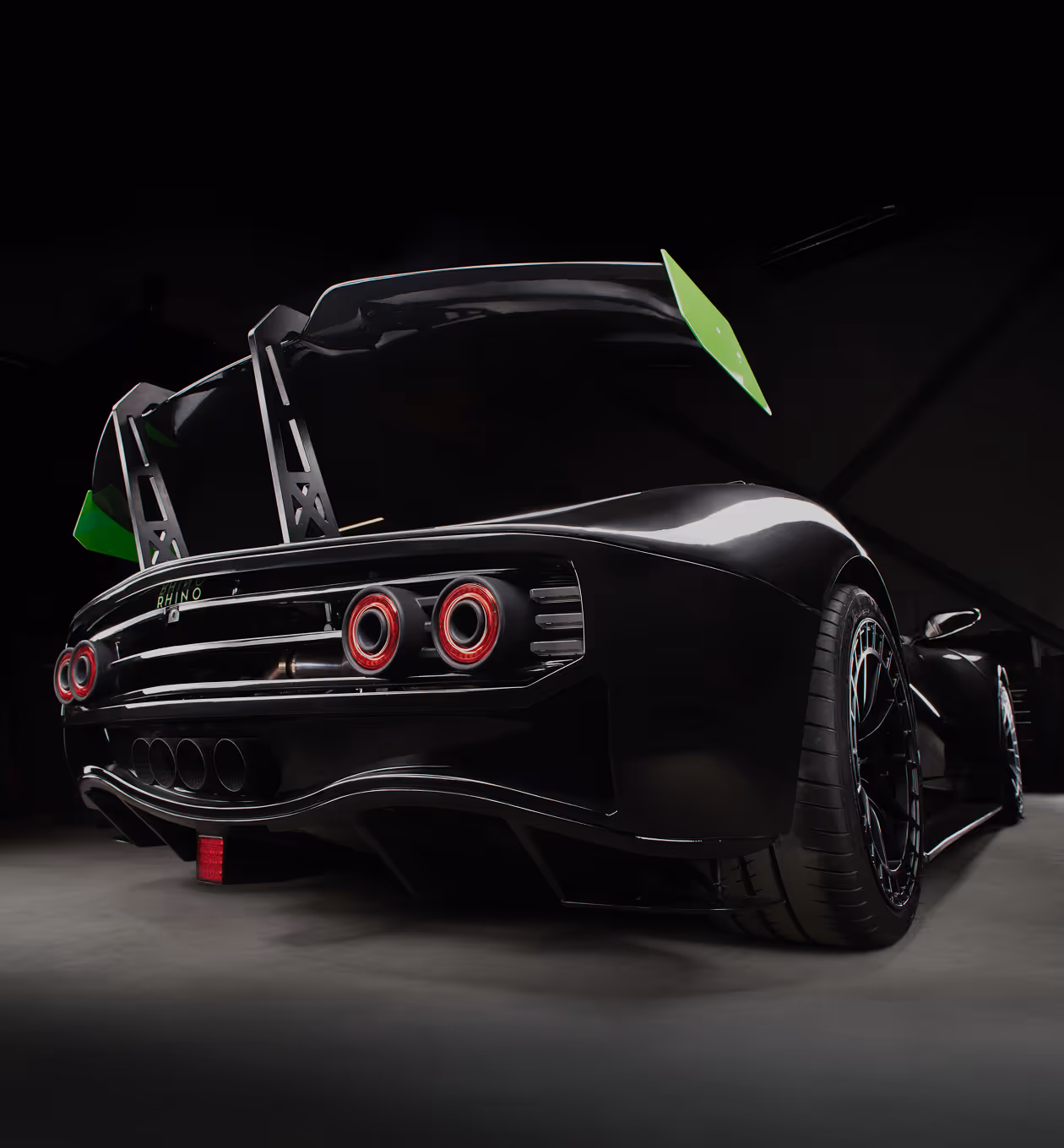

Rear wing with manually adjustable AOA
DIMENsIONS
Length: 4310 mm
Width: 1940 mm
Height: 1135 mm
Ride height: 70-100 mm front | 80-100 mm rear
Wheelbase: 2540 mm
Fuel capacity: 84 L
Curb weight: 1150 kg
Weight distribution: 60% rear | 40% front
Handling
STEERING
Electric, power-assisted steering
Steering rack with 2.25 turns lock to lock
BRAKES
Front and rear 6 piston AP Racing racing brakes with 362mm ventilated discs
AW 6082 T6 billet aluminium front/rear brake disc bells
SUSPENSION

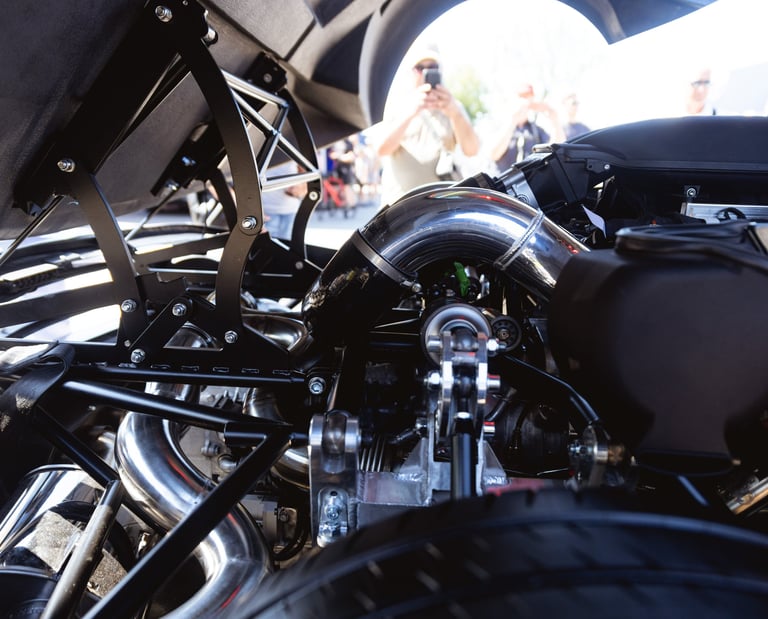

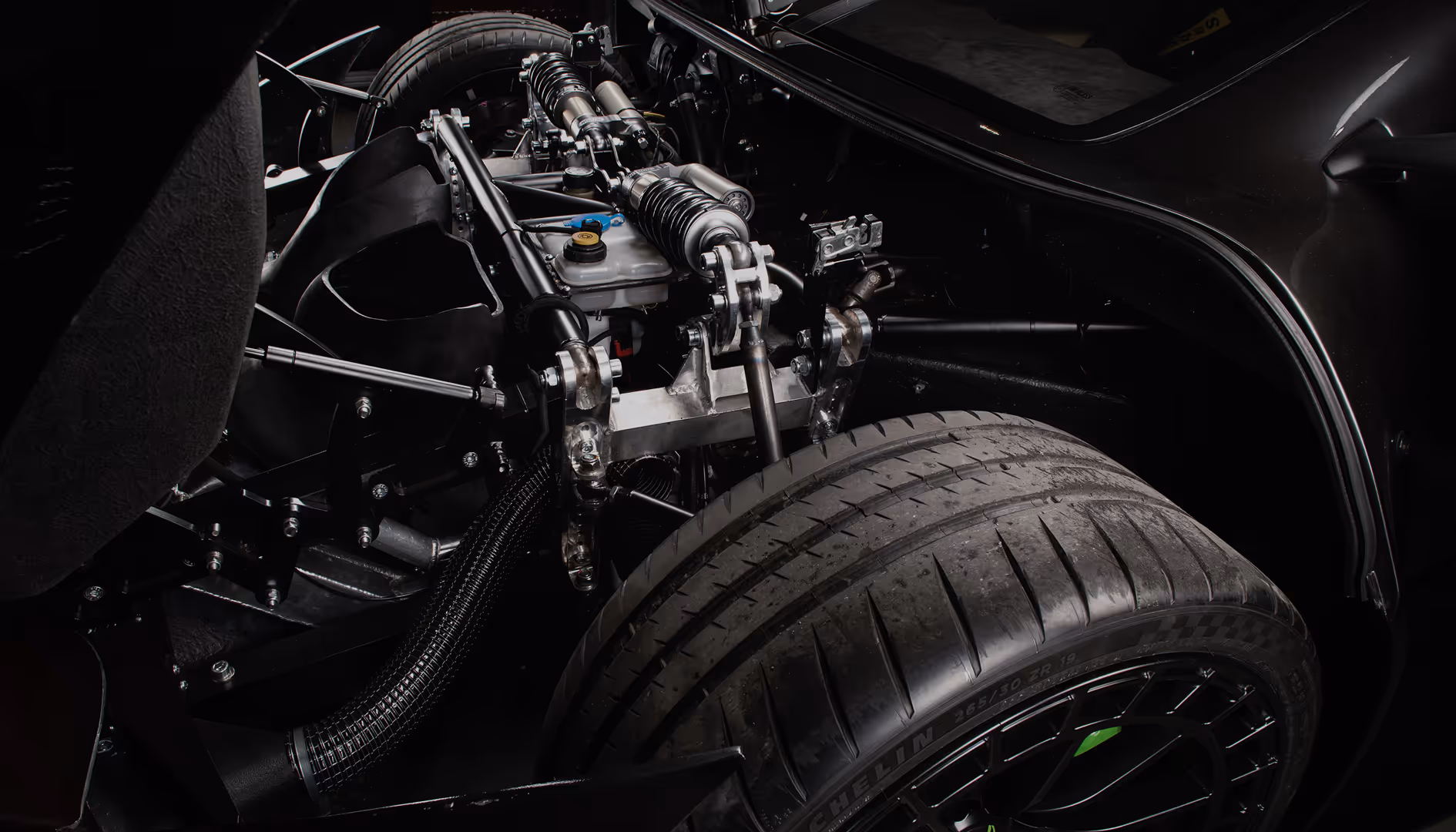

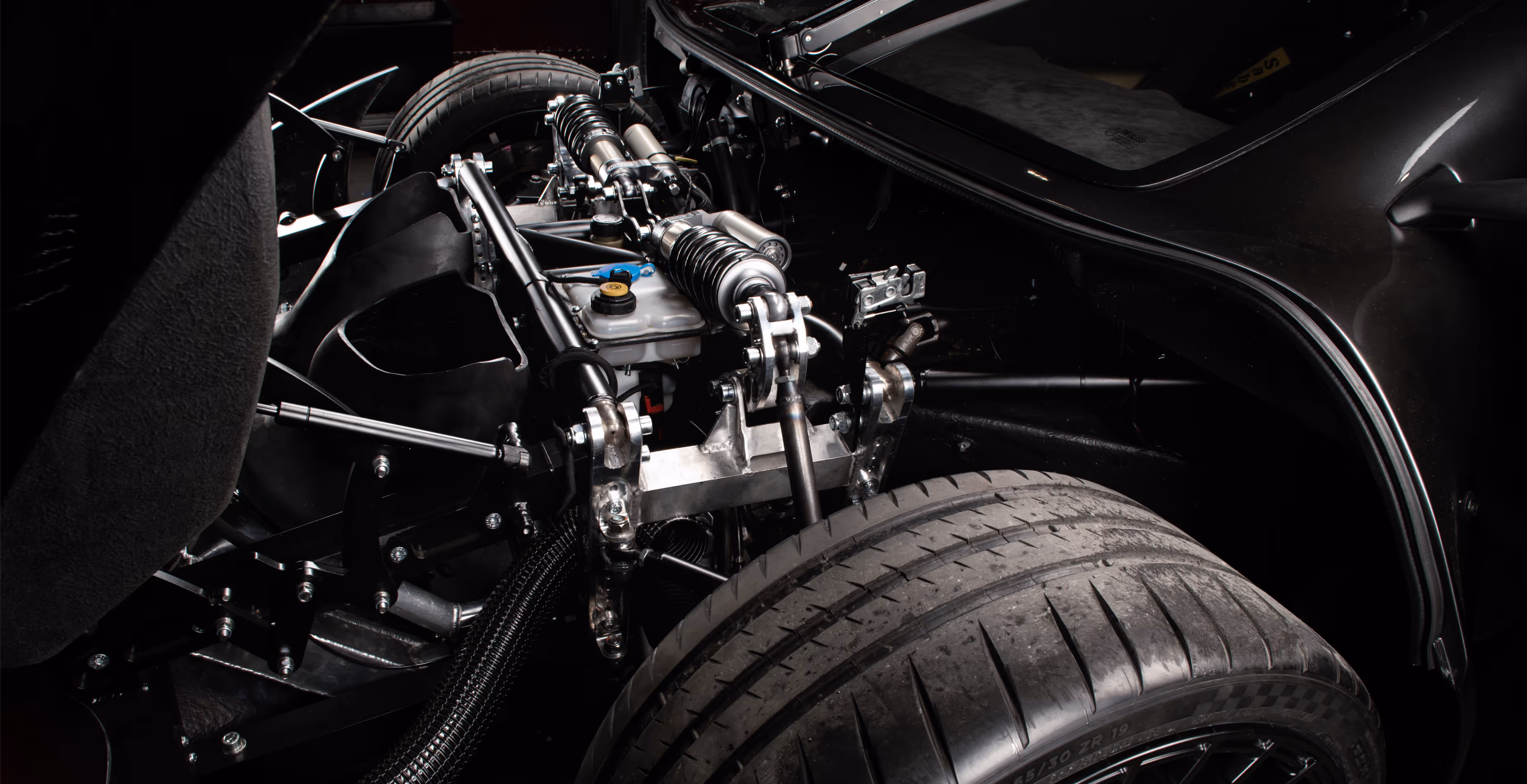

Fully adjustable, independent, double wishbone suspension with pushrods
Custom, high grade billet aluminum uprights
3-way adjustable Nitron R3 racing dampers
WHEELS AND TYRES

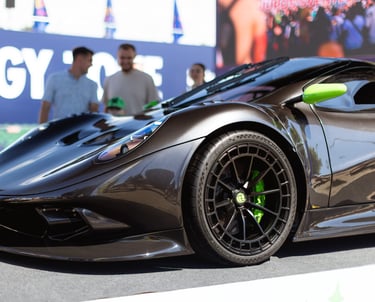

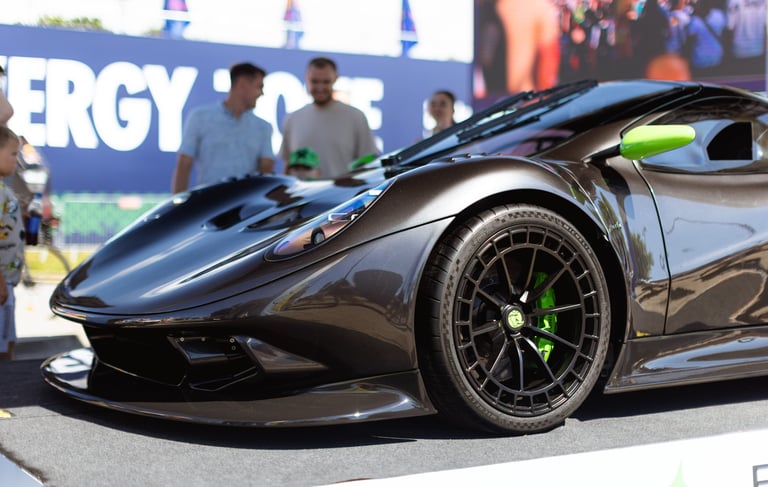

Front R19 9.5j alloy wheels with Toyo Proxes tyres
Rear R19 11j alloy wheels with Toyo Proxes tyres
